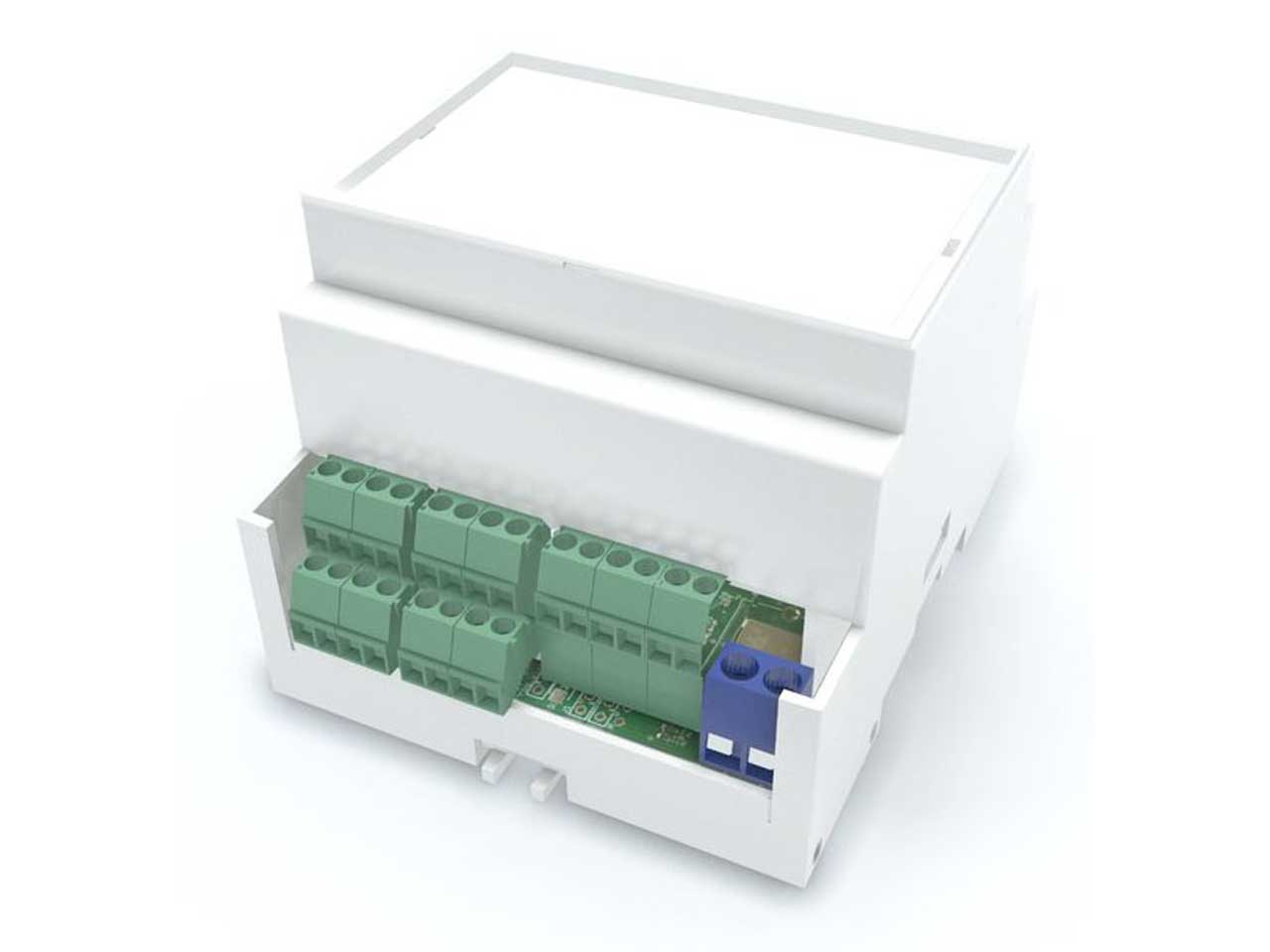

The sensor box is a universal device with analog and digital inputs to which any type of sensor can be connected.
Sale!
Sigfox Sensor
Sigfox sensor with analog/digital input 4-20mA 24V DC supply incl. ext. Antenna
99,00 € tax excl. 117,81 € tax incl.
Availability: 4 in stock
excl. 19% VAT plus shipping
| Produktart |
|---|
- 4 analog inputs 0V - 10V / option: 4mA - 20mA
- 4 digital inputs / 3 digital outputs
- All inputs are protected against overvoltage
- Communication network: SIGFOX (Optional Wireless M-Bus Sensor IO)
- Worldwide network access via API
- Operating frequency: 868.130 MHz
- RF power: 14dBm
- Antenna: internal (option: external SMA socket)
- Gear cycle: max. 6 hour or less
- Dashboards: available from various vendors
- MIOTY Standard from Fraunhofer / DIEHL
- Power supply: external 5V DC @ 100mA, optional with 24V DC
- Emergency power supply: internal lithium battery 3.6V
- Operating temperature range: -20°C to +50°C
- Housing: Standard DIN rail
- Dimensions: 70 x 86 x 58 mm
