Wiring Kits for Control Units (Section 14a of the Energy Industry Act)
An efficient, error-free, and code-compliant control panel installation saves valuable work time and ensures the long-term reliability of your projects. One issue is currently gaining tremendous importance: grid-friendly control under Section 14a of the Energy Industry Act (EnWG).

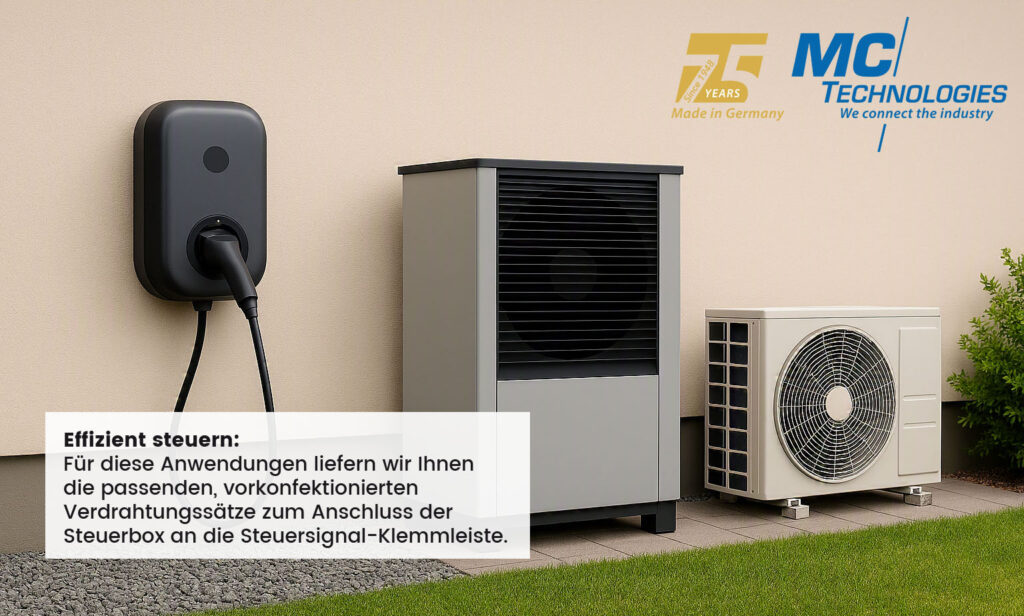

Once the new regulations take effect, controllable consumer devices (SteuVE) in the low-voltage grid with a connected load exceeding 4.2 kW must be technically controllable by the grid operator. This directly affects common installations such as:
- Non-public wall boxes (private charging stations)
- Heat pumps (including electric heating elements)
- Air Conditioning and Refrigeration Technology
Precise and reliable components are essential for the smooth connection of the required control box to the control signal terminal block. To help you implement these requirements quickly and securely, we have specifically expanded our portfolio.

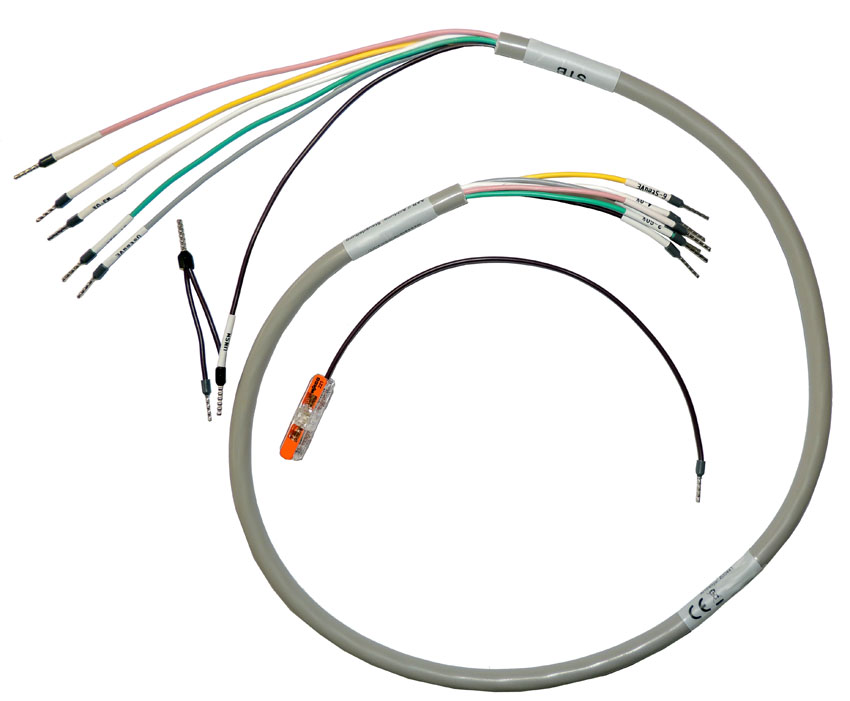

Starting immediately, we will supply you with the appropriate wiring kit for connecting the control box to the control signal terminal block —fully pre-assembled and ready for immediate use. Simply choose the optimal length based on the available space in the control cabinet: 1 m, 1.5 m, or 2 m.
Your benefits in control panel construction:
- Huge time savings: No time-consuming cutting to length or assembly on site.
- Maximum flexibility: Three field-proven lengths to suit any control cabinet configuration.
- Compliance with Standards: Secure signal flow for the control interfaces required by law.
Detailed technical specifications:
- Control cable: Flexible LiYY 6 x 0.75 mm²
- Rated voltage: At least 300/500 V
- Rated surge voltage: At least 2.5 kV
- Coat color: gray
- Cable length: Available in 100 cm, 150 cm, and 200 cm (tolerance: +/- 2 cm)
Make your installations for heat pumps, wall boxes, and other equipment future-proof, compliant with regulations, and cost-effective.
Do you have questions about practical implementation, or would you like a customized quote for your next major project?
