MC90 Terminal Global

SKU: 193379 Category:

MC90 Terminal Global LTE CAT4/Global/GPS/ USB/RS232

189,00  tax excl. 224,91  tax incl.

Availability: Available on request

The MC90 terminal supports mobile data communication via LTE Cat 4 and contains the Quectel EG25-G module, which enables a reliable, worldwide and wireless connection. Data can be sent via AT commands using various protocols such as SMS, FTP(S), HTTP(S) and MQTT. The device is characterised by extremely low power consumption, making it ideal for battery-powered or energy-sensitive applications. In addition, the MC90 has a global GNSS receiver that enables fast, accurate and reliable localisation. These features make the device a suitable solution for IoT applications that require reliable and energy-saving mobile data communication.

  • IoT/M2M optimised LTE Cat 4 data terminal
  • Quectel EG25-G module integrated
  • Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
  • GNSS receiver (GPS)

We recommend the M2M SIM from wherever SIM

IoT-Geräte

Frequenzen

,

Schnittstellen

,

  • Supporting networks:
    • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
    • LTE-TDD: B38/B39/B40/B41
    • WCDMA: B1/B2/B4/B5/B6/B8/B19
    • GSM: B2/B3/B5/B8

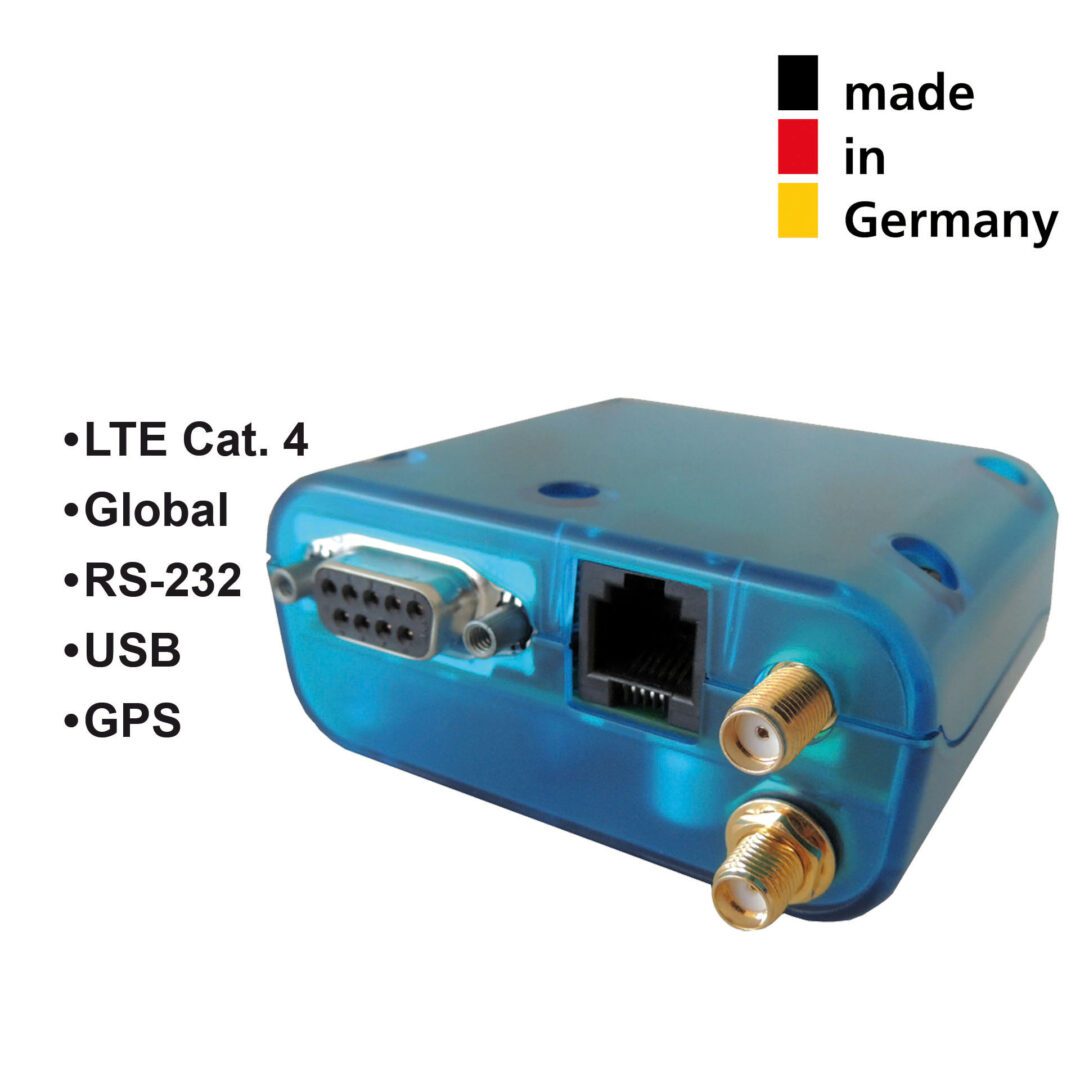

  • Interfaces: Power (RJ12), RS232 (Sub-D), USB B, 2 x SMA antenna connection (GSM/GPS), mini SIM card holder/reader
  • AT commands control the sending of data via SMS, FTP(S), HTTP(S), MQTT
  • Supply voltage: 8 - 30 V DC
  • Operation temperature: -10°C to +60°C
  • Housing: plastic
  • Dimensions: approx. 74 x 33 x 65 mm
  • Weight: approx. 85 g
