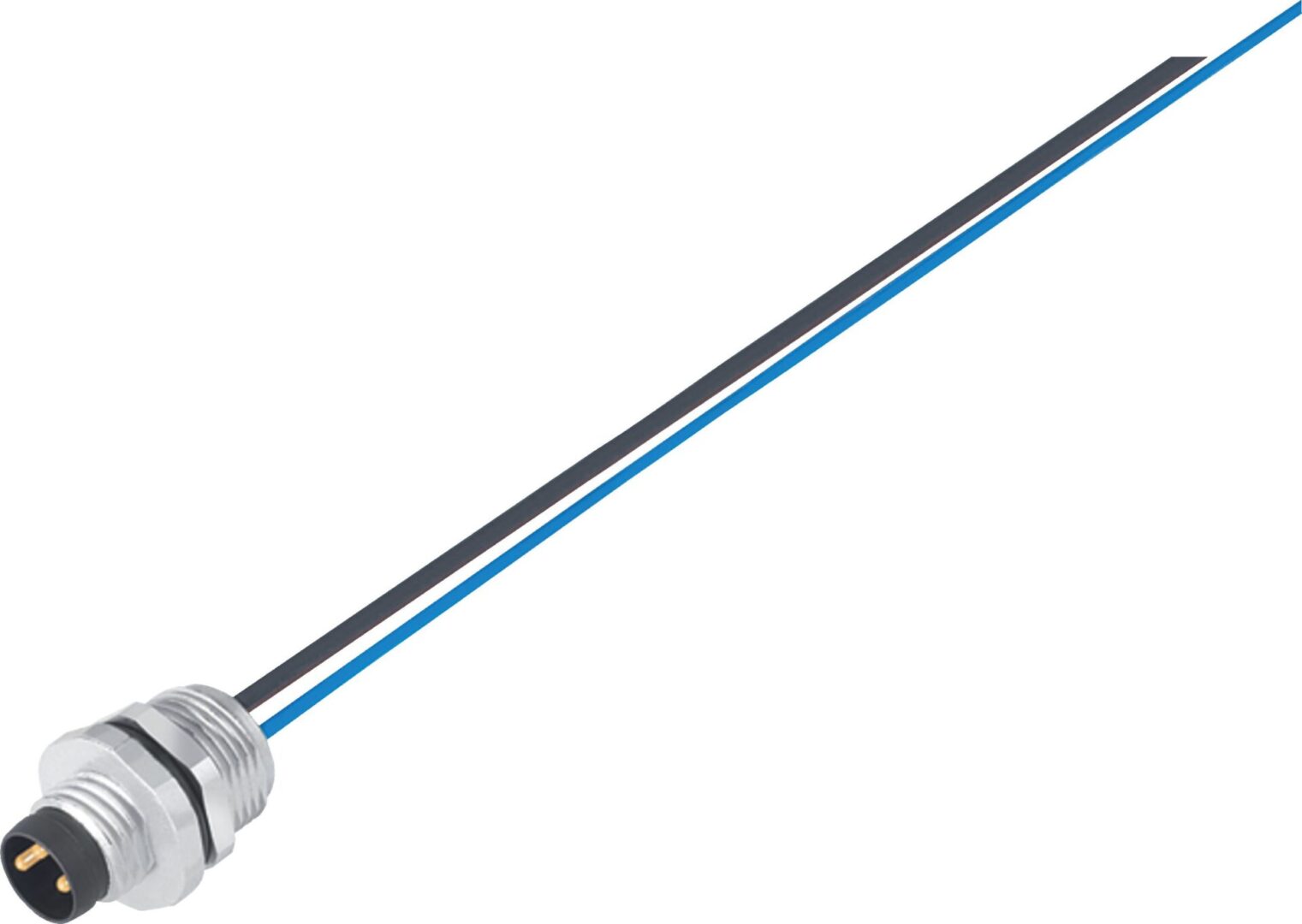

binder 76 6219 1111 00005-0200 M8 flange connector, number of poles: 5 unshielded, stranded wires, IP67 UL, M10x0.75
binder 76 6219 1111 00005-0200
binder 76 6219 1111 00005-0200 M8 flange connector, number of poles: 5 unshielded, stranded wires, IP67 UL, M10x0.75
7,35 € tax excl. 8,75 € tax incl.
Available on request
excl. 19% VAT plus shipping
| Bauform | |
|---|---|
| binder Serien | |
| Polzahl | |
| Schutzart | |
| Verriegelung |
- Connector design: Male panel mount connector
- construction standard: DIN EN 61076-2-104
- strand length: 0,2 m
- Design: Straight pin connector
- Connector locking system: screw
- Connection type: Stranded wire
- Ingress Protection: IP67
- Connection cross-section: max. 0,25 mm² / AWG 24
- Temperature range from/to: -40 °C / 85 °C
- Mechanical service life: > 100 mating cycles
- Weight: 9.06 g
- Customs tariff number: 85369010
