4-in-1 combination antenna 5GNR MIMO/WLAN/GNSS from our Smart Collection
617-5925 MHz Sub 6GHz Bands
max. gain: 6,7 dBi
4 x 3m LL100 cable FAKRA-A-(f)-QUAD
IK09, IP67, IP69K certified

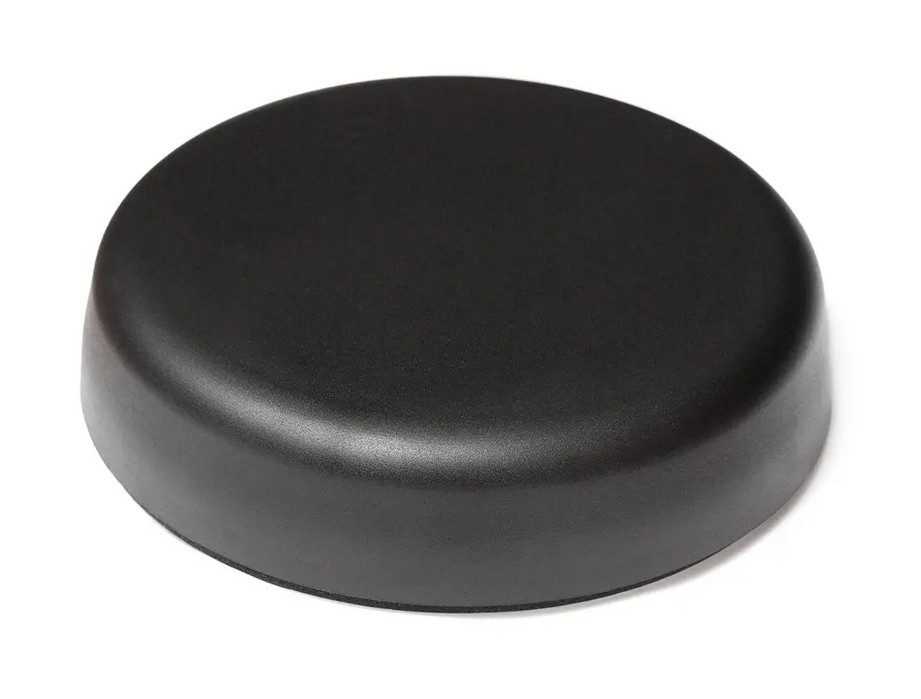

Antenne 4-in-1 / M18-SP
Antenna 4-in-1 / M18-SP 2×4 MIMO / 1×4 WiFi7 / 1×4 RF LL100 | FAKRA-A-(f)-QUAD L=3,0 m | smart collection
98,63 € tax excl. 117,37 € tax incl.
Available on request
excl. 19% VAT plus shipping
| Anschluss | |
|---|---|
| Anwendung | |
| Marke | |
| Frequenzen | |
| Kabellänge | |
| Montageart |
- Nets: 5G MIMO/ 5G/4G/3G/2G/GPS / WiFi/ ISM
- Frequencies: 617-960 / 1427-2690 / 3300-5000/ 5150-5925 / WiFi 2410-2490/ 4920-7125 MHz / GPS
- Gain: max. 6,7 dBi
- Mounting type: roof mounting
- Cable: 4 x 3m LL100
- Connector: 4 x FAKRA-A-(f)-QUAD
- Dimensions: Ø 136 × 31.5 mm
- Protection Class: IP67, IP69, IK09
