MC100 Terminal Global GPS

SKU: 162510 Categories: , ,

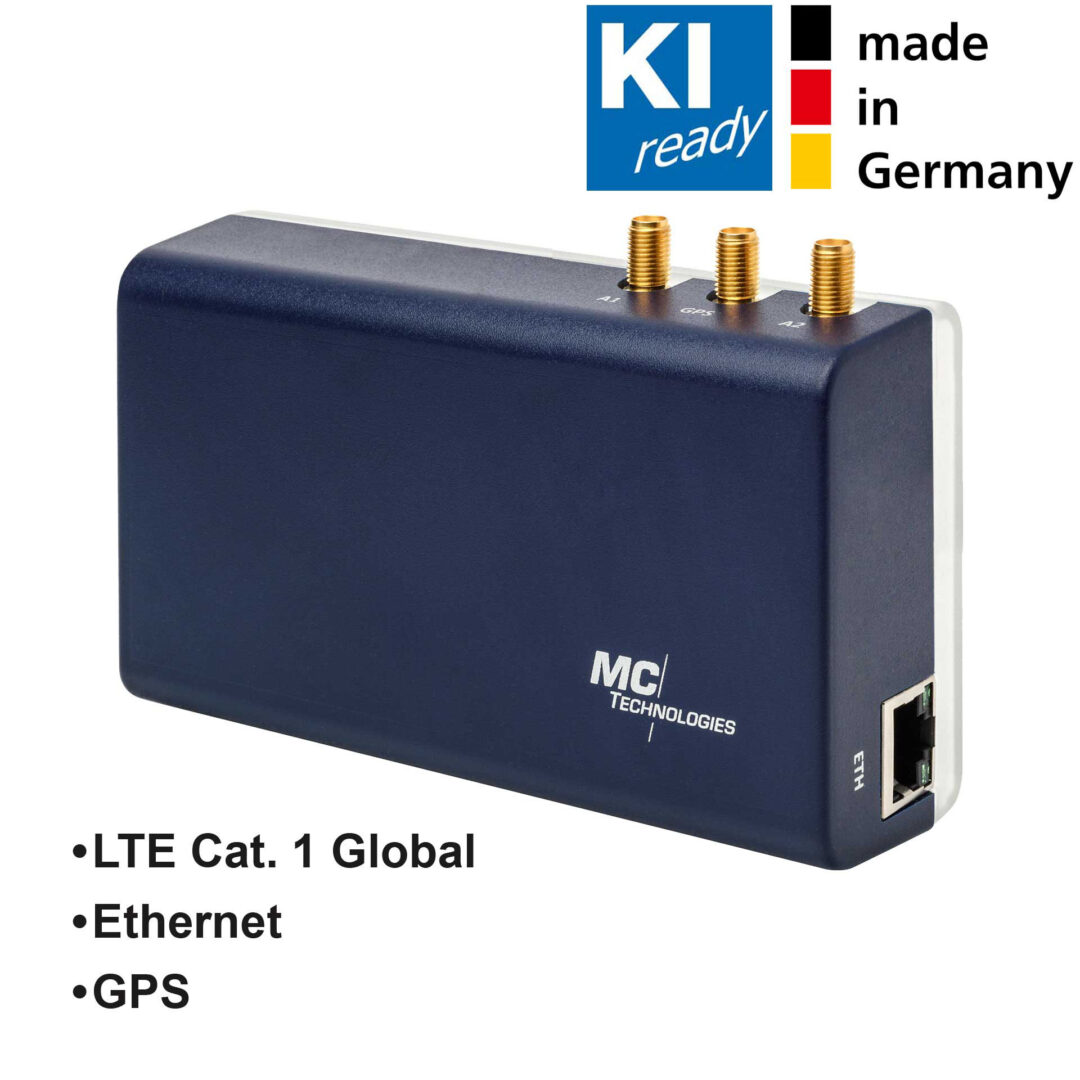

MC100 Terminal Global GPS LTE CAT1, 1ETH

229,00  tax excl. 272,51  tax incl.

Availability: 174 in stock

- +
Please contact us for project enquiries:

The MC100 GPS 4G Cat1 LTE gateway offers global connectivity and a fast internet connection.

Features of the MC100 Global GPS:

  • 4G Cat1 LTE connectivity for reliable and fast wireless data communication.
  • Integrated Quectel EG21-G module for reliable mobile communication with global band coverage for broad connectivity.
  • GPS functionality for accurate positioning.
  • Pre-installed Node-RED™ enables easy creation and management of IoT applications and data flow programs.
  • An OpenWrt 24.10-based Linux distribution that provides a stable platform for application development.

The MC100 terminal is suitable for a variety of applications and can be used in IoT and M2M scenarios, including data aggregation, remote monitoring, control and much more.

We recommend our remote management and monitoring software M2MGate for VPN remote access, update management, device configurations and device management of device fleets for the MC100.

We recommend the M2M SIM from wherever SIM

Frequenzen

, ,

Schnittstellen

IoT-Geräte

  • LTE Cat1 (4G): Band 1,3,5,7,8 and 20
  • HSDPA/HSUPA/HSPA+ (3G): Band 1,5,8, all bands with diversity
  • GSM/GPRS/EDGE (2G): Band 3.8
  • Dimensions (W x H x D): 120 x 75 x 35mm
  • Weight: approx. 140g
  • Supply voltage: 8 to 30V DC
  • Operating temperature: -20°C to +70°C
  • Housing: plastic
  • Mounting: Wall mounting / DIN rail mounting
Controller, memory and operating system:
  • ARM Cortex-A7, 528 MHz controller
  • 512 MB RAM
  • 4 GB Flash
  • OpenWrt Linux
  • Programmable with C/C++, Python™, Java™, Node-RED™ or others
  • Basic configuration via web interface, SSH
Interfaces:
  • 10/100 MBit/s Ethernet
  • Power: plug-in screw terminal
  • Micro SD card, up to 64 GB (internal)
  • Mini SIM
  • 3 SMA antenna connectors
