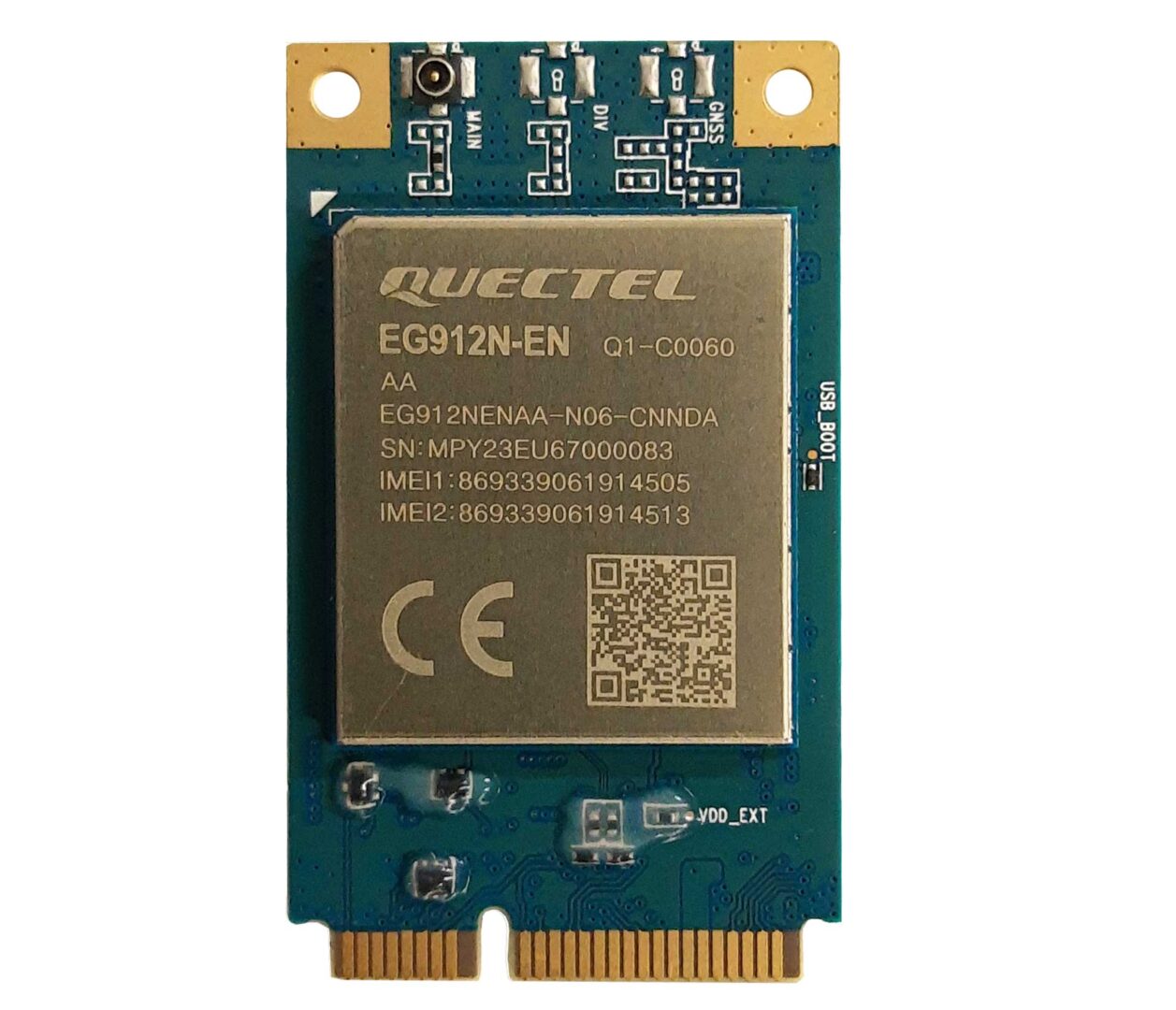

Quectel EG912N-EN mPCIe

SKU: 193793 Categories: ,

Quectel EG912N-EN mPCIe EG912NENAA-N06-MN0AA LTE Cat1, LTE 450, 2G mPCIe

23,00  tax excl. 27,37  tax incl.

Availability: 54 in stock (can be backordered)

  • LTE 450 Cat. 1 module
  • Mini PCIe
  • Dimensions: 51.0 × 30.0 × 4.9 mm
  • Weight: 8.5g
  • Max. data rates of 10Mbps DL / 5Mbps UL
  • Extended temperature range of -40°C to +85°C
Kategorie

Form Factor

  • Region: Europe
  • Frequency
    • LTE-FDD: B1/ B3/ B5/ B7/ B8/ B20/ B28/ B31/ B72
    • GSM/ EDGE (Optional): B3/ B8
  • Data Transmission:
    • LTE-FDD Data Rate (Mbps): Max. 10 (DL)/Max. 5 (UL)
    • GPRS Data Rate (kbps): Max. 85.6 (DL)/ Max. 85.6 (UL)
    • EDGE Data Rate (kbps): Max. 236.8 (DL)/ Max. 236.8 (UL)
  • Interfaces: USB 2.0, (U)SIM, LED_WWAN, UART, ERST, Antenna, I2C
  • Form factor: Mini PCIe
  • Dimensions: 51.0 × 30.0 × 4.9 mm
  • Weight: 8.5g
