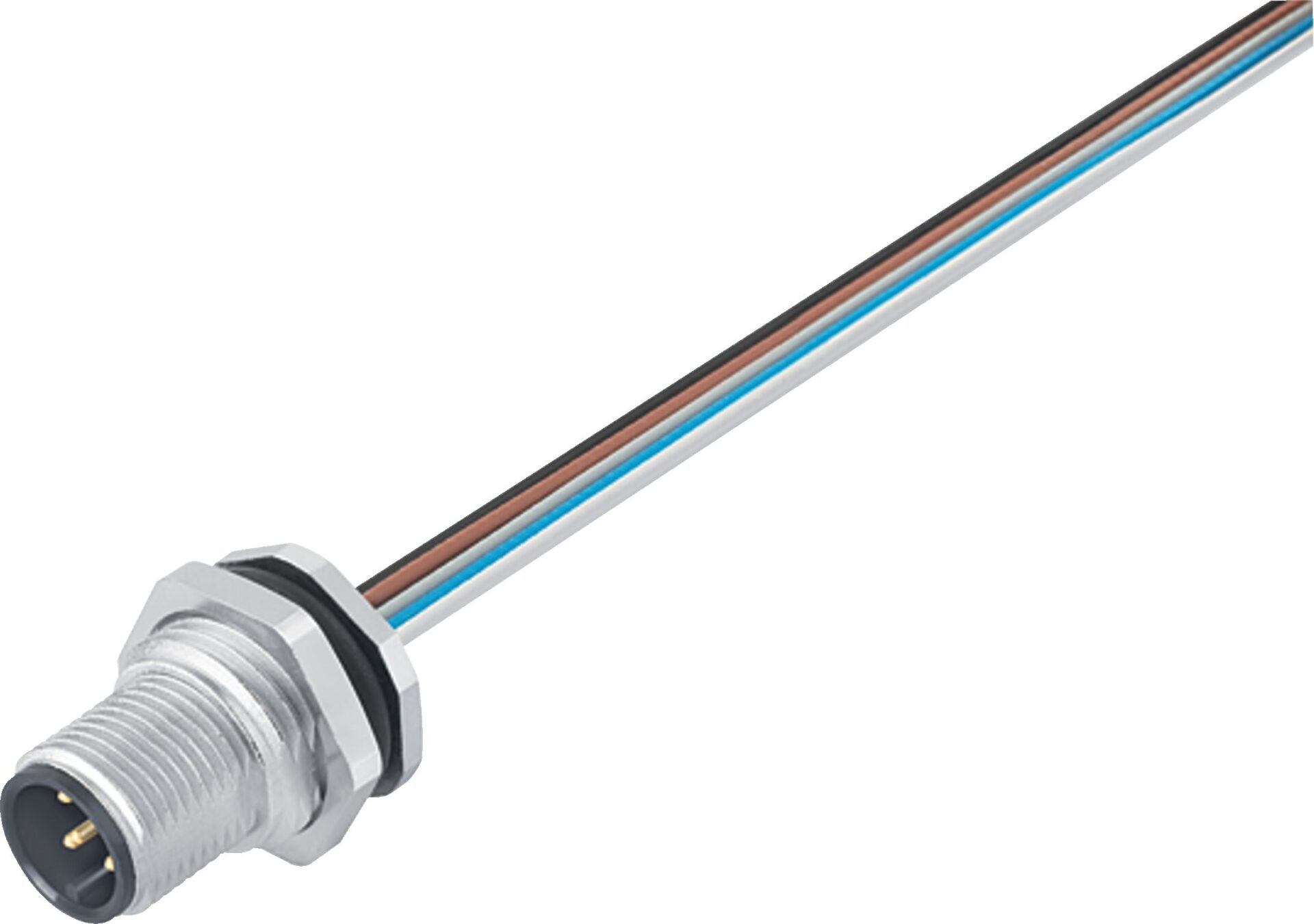

binder 76 0631 1011 00004-0200 M12-A flange connector, pin configuration: 4 strands, IP68, UL, M16x1.5 FMT screwable from the front
binder 76 0631 1011 00004-0200
binder 76 0631 1011 00004-0200 M12-A flange connector, pin configuration: 4 strands, IP68, UL, M16x1.5 FMT screwable from the front
9,22 € tax excl. 10,97 € tax incl.
Availability: Available on request
excl. 19% VAT plus shipping
| Bauform | |
|---|---|
| binder Serien | |
| Polzahl | |
| Schutzart | |
| Verriegelung |
- Connector design: Male panel mount connector
- Design standard: DIN EN 61076-2-101
- strand length: 0,2 m
- Design: Straight pin connector
- Connector locking system: screw
- Connection type: Stranded wire
- Protection class: IP68
- Connection cross-section: max. 0,25 mm² / AWG 24
- Temperature range from/to: -40 °C / 85 °C
- Mechanical service life: > 100 mating cycles
- Weight: 20.85 g
- Customs tariff number: 85369010
