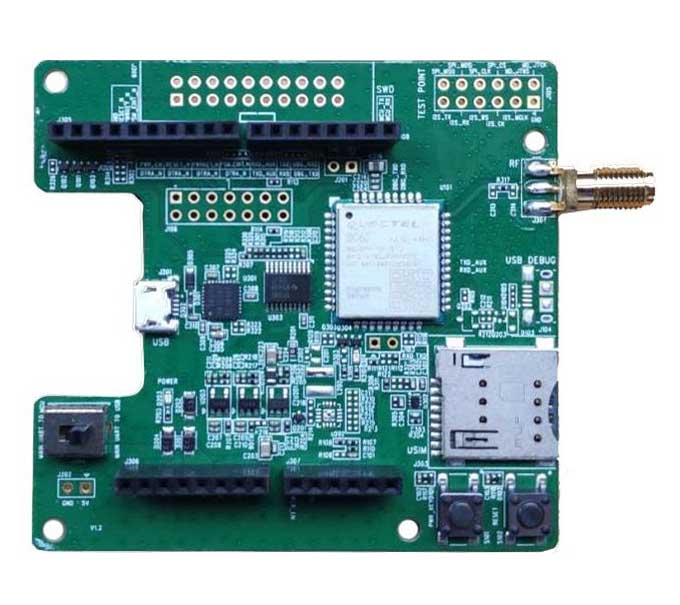

Quectel BC65-TE-B KIT

SKU: 193899 Categories: ,

Quectel BC65-TE-B KIT BC65PBTEB-KIT LPWA BC65-TE-B KIT BC65 EVAL Kit

55,00 € tax excl. 65,45 € tax incl.

Available on request

excl. 19% VAT plus shipping

Please contact us for project enquiries:

BG65-M4 Evaluation Board

Kategorie

  • Power Supply
    • USB interface: Supply voltage: 4.75–5.25 V / typical supply voltage: 5.0 V
    • Arduino interface: Supply voltage: 4.75–5.25 V / typical supply voltage: 5.0 VPower supply interface: Supply voltage: 5.0 V
    • Transmitting Power: 23 dBm ±2 dB
  • Temperature Range:
    • Operating temperature: -25°C to +75°C 1)
    • Extended temperature: -40°C to +85°C 2)
    • Storage temperature: -40°C to +90°C
  • USIM Interface: Supports 1.8/3.0 V external USIM cards
  • UART Switch: Switches communication objects of the main UART port of the BC65 module
  • USB Interface: Currently supports two UART ports:
    • Main Port (Ch A): Transmits data (including AT commands) / The default baud rate is 9600 bps
    • Debug Port (Ch B): Obtains underlying logs through software debugging with CoolWatcher, a debugging tool / Upgrades software with QFlash / The default baud rate: 921600 bps
    • Auxiliary Port* (only for QuecOpen solution): Transmits data (including AT commands) / The default baud rate is 9600 bps
  • Arduino Interfaces: Connects with STM32 Nucleo-64 development board
  • RESET Button: Resets the BC65 module
  • PWRKEY Button: Powers on the BC65 module
  • Physical Characteristics Size: (70.0 ±0.15) mm × (74.0 ±0.15) mm × (1.6 ±0.15) mm
  • Firmware Upgrade: Upgrades firmware via Debug Port and DFOTA
  • Antenna Interface: Connects to antenna pad with 50 Ω impedance control
  • SMS*: Text and PDU mode
* Under development
Quectel-BC65-TB User Guide V 1.0
